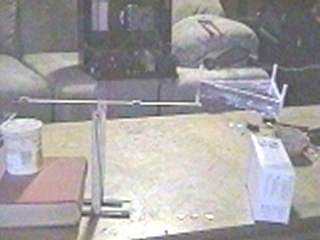

VoltageApplied #1
Weights used

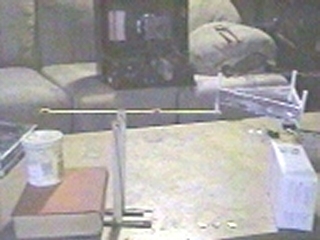

Voltage Applied #2

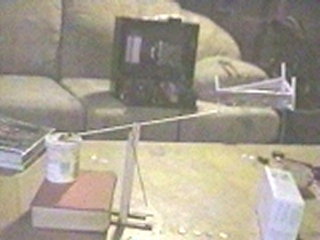

Voltage, In Balance
Notice weight to right of center,
overcoming lift

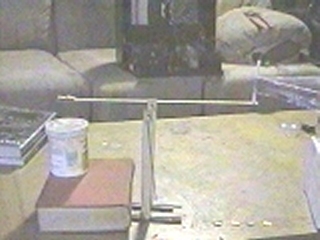

Voltage, In Balance #2
In balance with lifter,
no voltage, notice no weight to
right of center.
This was not my start position,
start position was with no
weights, out of balance
because of lifter weight
no picture.

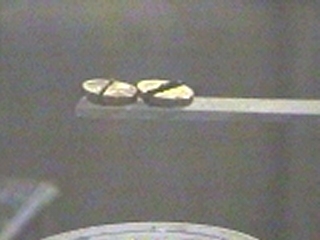

Weights on end of balance,
5 gm per stack (2 per stack)
10 gm total

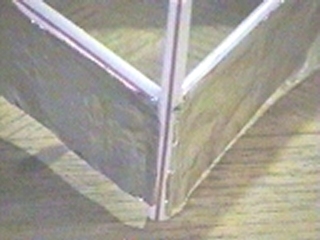

Detail of lifter corner, wire
connects skirts to each other,
plan next experiment to
show can guide lifter
mechanically by breaking wire

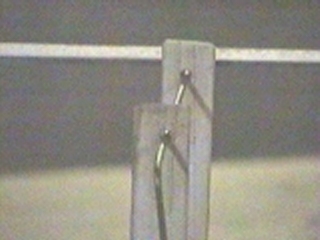

Detail of balance....top
Detail of balance.....bottom

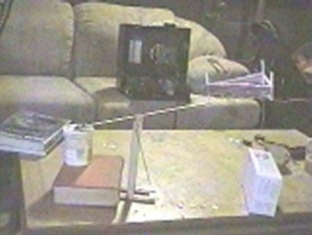

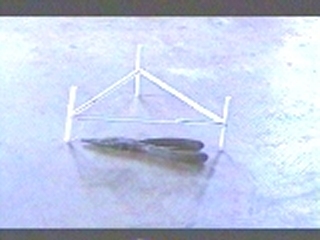

Relative size of lifter....same
as JL's lifter#1

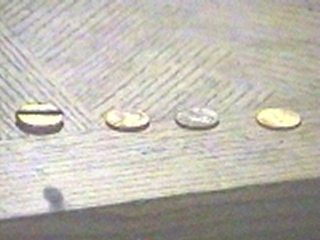

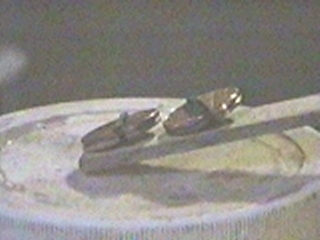

Weights used, pennies (2.5 gm each)
pennies with band, 2 ea. per stack..5 gm
